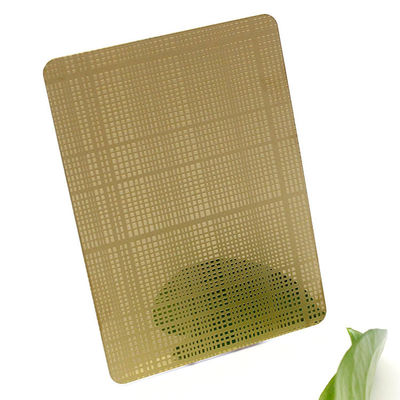

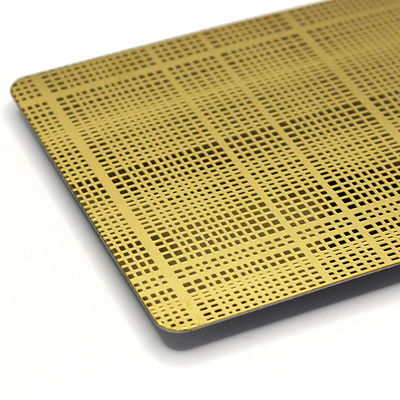

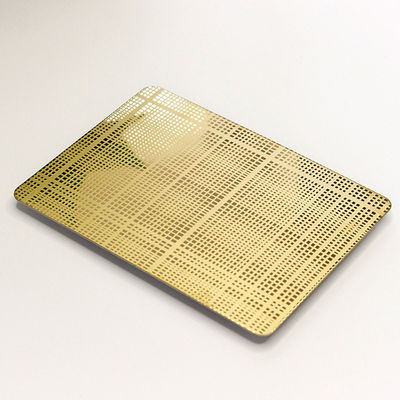

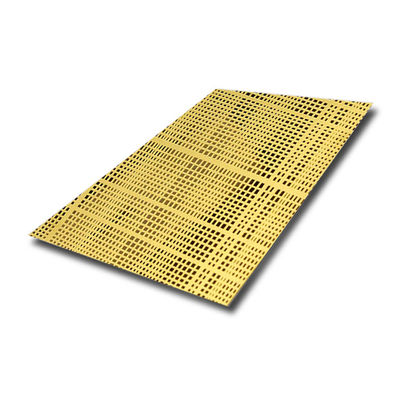

201 Super Mirror Gold PVD Stainless Steel Sheet Decor Plate
| Menşe yeri | ÇİN |
|---|---|
| Marka adı | MBT |
| Sertifika | ISO, AISI, ASTM, GB, EN, DIN, JIS |
| Model numarası | 201 |
| Min sipariş miktarı | 1 adet |
| Fiyat | 30-40 USD |
| Ambalaj bilgileri | Ahşap kasa |
| Teslim süresi | 7-15 iş günü |
| Ödeme koşulları | L/C, D/A, D/P, T/T |
| Yetenek temini | 7000-8000 ton/ay |
Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.
Naber:0086 18588475571
sohbet: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
| Tip | Kazınmış paslanmaz çelik sac | Standart | ASTM, AISI, GB, JIS, DIN, EN |
|---|---|---|---|
| Seviye | 304 Paslanmaz çelik | Şekil | Çarşaf |
| Teknik | Cila/kazınmış | Yüzey tedavisi | Ayna/kazınmış |
| Renk kaplama | Altın/Gümüş | PVC filmi | 70 Micron PVC Film |
| Kalınlık | 1.00mm | Boyut | 1219x3048mm |
Ürün Açıklaması
201 Super Mirror Gold PVD Stainless Steel Sheet Decor Plate
- Type: Etched Stainless Steel Sheet
- Standard: ASTM/AISI/GB/JIS/DIN/EN
- Packing: Wooden Pallet
- PVC Film:70 Micron PVC Film
- Delivery: Normally 7-15 days
- Material: Grade 304 Stainless Steel
- Feature: Sustainable
- Usage: Ceiling/Door/Wall
Application
Stainless steel etched sheet are being used on projects all over the world for exterior wall cladding, roofing, column covers, doors, signage, bridge cladding, commercial and residential kitchens, buses, trains, and airplane food handling equipment and so on.
| Grade | STS 304 | STS 316 | STS 430 | STS 201 |
|---|---|---|---|---|
| Elong(10%) | Above 40 | 30MIN | Above 22 | 50-60 |
| Hardness | ≤200HV | ≤200HV | Below 200 | HRB100,HV230 |
| Cr(%) | 18-20 | 16-18 | 16-18 | 16-18 |
| Ni(%) | 8-10 | 10-14 | ≤0.60% | 0.5-1.5 |
| C(%) | ≤0.08 | ≤0.07 | ≤0.12% | ≤0.15 |
| Product Information | |
| Type | Stainless Steel Sheet |
| Thickness | 0.3-3.0mm |
| Size | 1000*2000mm,1219*2438mm,1219*3048mm,customized ,max width 1500mm |
| Grade | 201 / 304 / 304L / 316 / 316L / 430 / 410 / etc |
| Available Finished | NO.4 / Hairline / Mirror / Etched / PVD Color / Embossed / Vibration / Sandblast / Combination / Lamination/ etc |
| Available Color | Gold / Rose gold / Blue / Champagne Gold / Copper / Bronze / Black / Purple / Green / etc |
| Origin | POSCO / JISCO / TISCO / LISCO / BAO STEEL / etc. |
| Packing way | PVC+ waterproof paper + strong sea-worthy wooden package |
|
Surface |
Definition |
Application |
| 2B |
Finished by heat treatment , picking or equivalent cold rolling , followed by skin pass to obtain adequate luster surface.
|
With bright and smooth surface ,easy for further grinding to obtain brighter surface ,suitable for medical instruments ,milk containers ,tableware and so on.
|
| BA |
Bright heat treatment after cold rolling.
|
Structural members .etc.kitchen utensil ,cutlery ,electric appliances ,medical instruments ,building decorations ,etc.
|
| NO.3/NO.4 |
Polished with No.150-240 abrasives.
|
Milky food processing equipment , medical instruments ,building decorations.
|
| HL |
Finished by polishing with abrasives of suitable grain size to obtain continuous streaks.
|
Building decorations ,such as elevators ,escalators ,door etc.
|
| 6K/8K |
A mirror-like reflective surface ,which is obtained by polishing with successively finer abrasives and buffing extensively with all grit lines are removed.
|
Building entrances,bulking column casting ,elevator's wall doors ,counters,sculptures etc. |
Description Of Etched Stainless Steel Sheet
Etched finish is created by a screen printing the protective acid resistant to a polished surface and acid etching the unprotected areas.The etching removes a thin layer of stainless steel and roughens the surface.And etched stainless steel sheet is a type of decorative stainless steel that has undergone a chemical or mechanical process to create patterns, designs, or textures on its surface.The etching process selectively removes material from specific areas, resulting in a contrast between the etched and unetched regions.This creates intricate and precise designs that are both aesthetically pleasing and durable.
Advantage Of Etched Stainless Steel Sheet
MEIBAOTAI has advanced production line, using professional materials, screen and ink, adopting development technology to make perfect etching effect. We can meet your own etched stainless steel design needs. Etched stainless steel sheets can be made with all-inclusive patterns, custom patterns, and even unique styles and patterns.
